Suzuki GSX-R 1000 Service Manual: Front footrest bracket construction

Suzuki GSX-R 1000 Service Manual / Body and accessories / Body structure / Repair instructions / Front footrest bracket construction

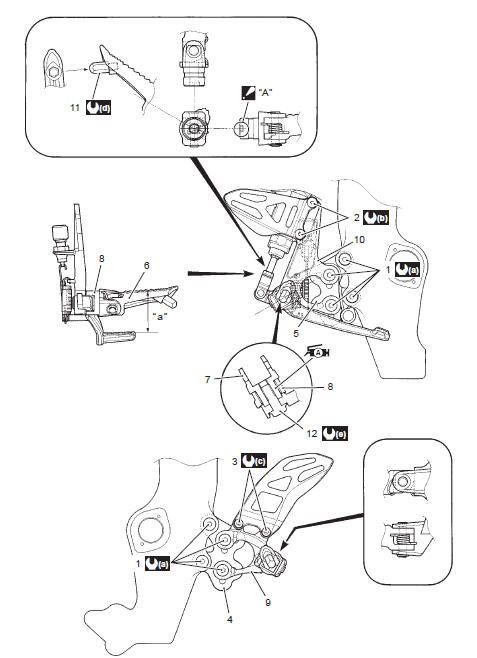

Suzuki GSX-R. Front footrest bracket construction


  1. Footrest bracket bolt
  2. Rear brake master cylinder mounting bolt
  3. Footrest guard bolt
  4. Footrest bracket no. 1 (Lh)
  5. Footrest bracket no. 1 (Rh)
  6. Footrest
  7. Footrest holder
  8. Rear brake pedal
  9. Footrest bracket no. 2 (Lh)
  10. Footrest bracket no. 2 (Rh)
  11. Bank sensor bolt
  12. Footrest holder bolt
  13. Align the cutaway when
    installing
  14. 65 – 75 Mm (2.6 – 3.0 In)
  15. 23 N·m (2.3 Kgf-m,
    16.5 Lbf-ft)
  16. 10 N·m
    (1.0 Kgf-m, 7.0 Lbf-ft)
  17. 4.5 N·m
    (0.45 Kgf-m, 3.0 Lbf-ft)
  18. 18 N·m (1.8
    Kgf-m, 13.0 Lbf-ft)
  19. 35 N·m (3.5
    Kgf-m, 25.5 Lbf-ft)

Apply grease to the
sliding surface.
