Suzuki GSX-R 1000 Service Manual: Front turn signal light components

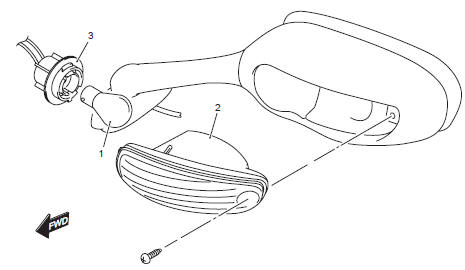

Suzuki GSX-R. Front turn signal light components


  1. Turn signal light bulb (12 v 21 w)
  2. Front turn signal light
  3. Socket
Headlight beam adjustment
Adjust the headlight beam, both horizontally and vertically. Note  to adjust the headlight beam, adjust the beam horizontally first, then vertically.  It is not necessar ...

Front turn signal light removal and installation
Removal Remove the screw. Disconnect the front turn signal coupler (1).  Remove the turn signal light assembly (2). Installation Install the front turn signal light in the ...

Other materials:

Oil cooler / oil cooler hose inspection and cleaning
Refer to “exterior parts removal and installation” in section 9d . Oil cooler hose inspection Inspect the oil cooler hoses for any damage and oil leakage. If any defects are found, replace the oil cooler hose with a new one. Oil cooler inspection Remove the oil cooler guard (1). ...

Swingarm removal and installation
Removal Cut the drive chain. Refer to “drive chain replacement” in section 3a .  Remove the rear wheel assembly. Refer to “rear wheel assembly removal and installation” in section 2d .  Disconnect the rear brake hose from the brake hose clamp (1). Remove the brake ho ...

Engine bottom side assembly
Assemble the engine bottom side in the reverse order of disassembly. Pay attention to the following points: Note apply engine oil to each running and sliding part before reassembling. Breather oil return plate When installing the breather oil return plate (1), apply thread loc ...
