Suzuki GSX-R 1000 Service Manual: Front wheel components

Suzuki GSX-R 1000 Service Manual / Suspension / Wheels and tires / Repair instructions / Front wheel components

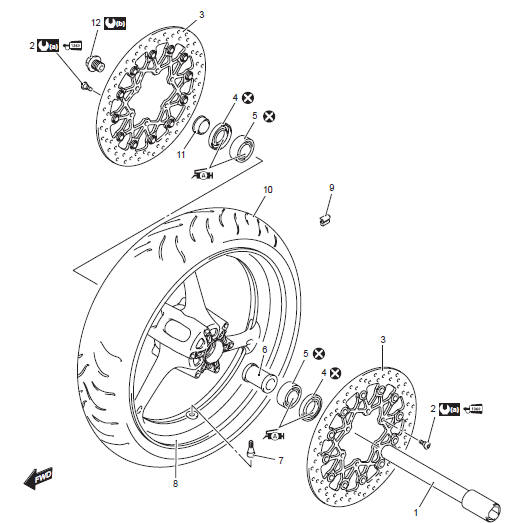

Suzuki GSX-R. Front wheel components



  1. Front axle
  2. Brake disc bolt
  3. Brake disc
  4. Dust seal
  5. Bearing
  6. Spacer
  7. Air valve
  8. Front wheel
  9. Wheel balancer
  10. Front tire
  11. Collar
  12. Front axle bolt
  13. 18 N·m (1.8 Kgf-m,
    13.0 Lbf-ft)
  14. 100 N·m
    (10.0 Kgf-m, 72.5 Lbf-ft)

Apply grease.


Apply thread lock to the
thread part.

Do not reuse.
Repair instructions
...

Front wheel assembly construction
Brake disc bolt Brake caliper mounting bolt Front axle bolt Front axle pinch bolt Clearance 18 N·m (1.8 Kgf-m, 13.0 Lbf-ft) 39 N·m (3.9 Kgf-m ...
