Suzuki GSX-R 1000 Owners Manual: Fuel hoses

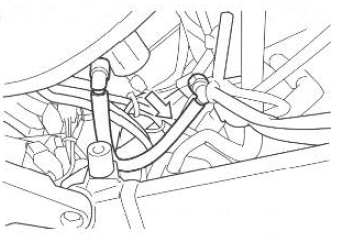

Suzuki GSX-R. Fuel hoses


Inspect the fuel hoses for damage and fuel leakage. If any defects are found, the fuel hoses must be replaced.

Throtile cable play
This motorcycle has a twin throttle cable system. Cable A is for pulling cable and cable B is for returning. To adjust the cable play: Loosen the lock nut 1.  Turn the adjuster 2 ...

Clutch adjustment
Clutch cable play should be 1 0 - 15 mm (0.4 - 0.6 In) measured at the clutch lever end. Adjust clutch cable play according to the following procedure: Minor adjustment Turn the clutch cable ...

Other materials:

Starter motor inspection
Refer to “starter motor disassembly and assembly” . Carbon brush Inspect the carbon brushes for abnormal wear, cracks or smoothness in the brush holder. If either carbon brush is defective, replace the brush holder set with a new one. Measure the length “a” of the carbon brushes using a v ...

Ckp sensor inspection
Refer to “electrical components location” in section 0a . Ckp sensor peak voltage Lift and support the fuel tank. Refer to “fuel tank removal and installation” in section 1g (page 1g- 9). Disconnect the ckp sensor coupler (1). Note be sure that all of the couplers are connect ...

Oil jet removal and installation
Piston cooling oil jet Removal Remove the engine assembly. Refer to “engine assembly removal” in section 1d .  Remove the crankshaft assembly. Refer to “engine bottom side disassembly” in section 1d (page 1d- 49).  Remove the piston cooling oil jets (1) from the upper cra ...
