Suzuki GSX-R 1000 Owners Manual: Headlight

To replace the headlight bulbs, perform the following steps:

Upper light bulb

Suzuki GSX-R. Upper light bulb

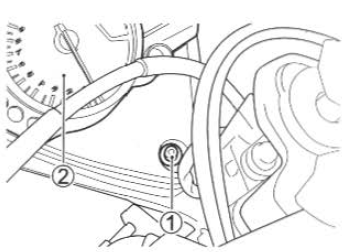

  1. Remove the bolt 1 to lift the instrument panel 2.

Suzuki GSX-R. Upper light bulb

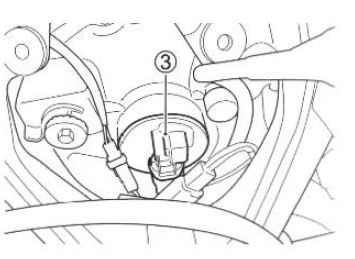

  1. Turn the cap 3 counterclockwise and remove it.

Suzuki GSX-R. Upper light bulb

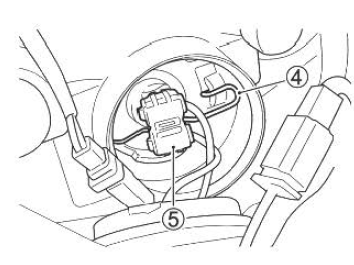

  1. Unhook the bulb holder spring 4 and pull out the socket 5.
  2.  Pull off the bulb from the socket.

Caution

Oil from your skin may damage the headlight bulb or shorten its life.

Grasp the new bulb with a clean cloth.

Light bulb replacement
The wattage rating of each bulb is shown in the following chart. When replacing a burned-out bulb, always use the same wattage rating according to the following chart. Caution Us ...

Lower light bulb
Turn the socket 1 counterclockwise and remove it. Turn the socket 2 counterclockwise and remove it.  Remove the bulb 3 from the socket. Caution Oil from ...
