Suzuki GSX-R 1000 Service Manual: Specifications

Service data

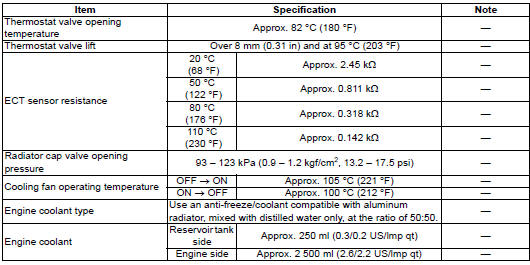

Thermostat + radiator + fan + coolant


Tightening torque specifications

Suzuki GSX-R. Tightening torque specifications


Note

the specified tightening torque is described in the following.

“Water hose routing diagram”  “water pump components”  “water pump construction”

Reference

: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .

Water pump related parts inspection
Refer to “water pump disassembly and assembly” . Mechanical seal Visually inspect the mechanical seal for damage, with particular attention given to the sealing face. Replace the mechanical seal ...

Special tools and equipment
Recommended service material Note required service material is also described in the following. “Water hose routing diagram”  “water pump components”  “water pump con ...

Other materials:

Ckp sensor inspection
Refer to “electrical components location” in section 0a . Ckp sensor peak voltage Lift and support the fuel tank. Refer to “fuel tank removal and installation” in section 1g (page 1g- 9). Disconnect the ckp sensor coupler (1). Note be sure that all of the couplers are connect ...

Ignition system check
Remove the spark plugs and reattach them to the spark plug caps. Put the engine stop switch in the "" position and ignition switch in the "on" position. While holding a spark plug with its base firmly against the engine, push the electric starter butt ...

Evap canister hose routing diagram (only for e-33)
Evap system purge control solenoid valve Surge hose Purge hose Fuel shut-off valve Rear fender Evap canister Seat hook White marking Yellow marking Up Face the clamp end downward Face the clamp end to the left Pass the ...
