Suzuki GSX-R 1000 Service Manual: Specifications

Suzuki GSX-R 1000 Service Manual / Engine / Ignition system / Specifications

Service data

Electrical unit: mm (in)

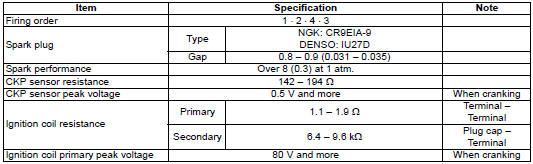

Suzuki GSX-R. Service data

Tightening torque specifications

Suzuki GSX-R. Tightening torque specifications

Reference

: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .

Drive mode selector inspection

Inspect the drive mode selector in the following procedures: set up the sds tool. (Refer to the sds operation manual for further details.) Turn the ignition switch on. Cli ...

Special tools and equipment

Recommended service material Special tool ...

Other materials:

Transmission removal
Remove the engine assembly from the frame. Refer to “engine assembly removal” in section 1d . Remove the engine top side. Refer to “engine top side disassembly” in section 1d . Separate the upper and lower crankcases. Refer to “engine bottom side disassembly” in section 1 ...

Gearshift shaft construction
Gearshift shaft Washer Snap ring Gearshift shaft return spring Gearshift cam drive plate Gearshift plate return spring 8.5 N·m (0.85 Kgf-m, 6.0 Lbf-ft) 13 N·m (1.3 Kgf-m, 9.5 Lbf-ft) 19 N·m (1.9 Kgf-m, 13.5 Lbf-ft) Apply ...

Gear position (gp) switch removal and installation
Removal Turn the ignition switch off. Lift and support the fuel tank. Refer to “fuel tank removal and installation” in section 1g (page 1g- 9). Disconnect the gear position switch lead wire coupler (1). Remove the engine sprocket cover. Refer to “engine sprocket r ...
