Suzuki GSX-R 1000 Service Manual: Vehicle identification number

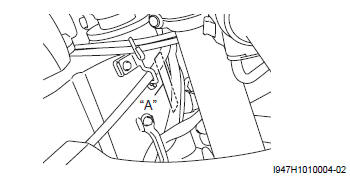

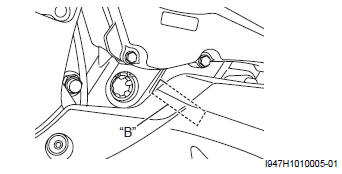

The frame serial number or V.I.N. (Vehicle identification number) “a” is stamped on the right side of the steering head tube. The engine serial number “b” is located on the lower crankcase. These numbers are required especially for registering the machine and ordering spare parts.
Vehicle side view
Note
difference between illustrations and actual
motorcycles may exist depending on the
markets.
Suzuki gsx-r1000 (2009-model)
Right side
Left side ...
Fuel and oil recommendation
Fuel (for USA and Canada)
Use only unleaded gasoline of at least 90 pump octane
(r/2 + m/2).
Gasoline containing mtbe (meltyl tertiary butyl ether),
less than 10% ethanol, or less than 5% methan ...
Other materials:
Tp sensor removal and installation
Refer to “throttle body disassembly and assembly” in section 1d .
Removal
Remove the throttle body. Refer to “throttle body
removal and installation” in section 1d (page 1d-
10).
Remove the tp sensor (1) with the special tool.
Special tool
: 09930–11950 (torx wrench (5 mm))
...
Cylinder head cover related parts
inspection
Refer to “engine top side disassembly” .
Refer to “engine top side assembly” .
Refer to “cylinder head cover disassembly and assembly” .
Cylinder head cover
Clean and check the gasket grooves “a” and pair reed
valve mating surfaces “b” of the cylinder head cover.
If there is anything unu ...
Evap canister hose routing diagram (only
for e-33)
Evap system purge control solenoid valve
Surge hose
Purge hose
Fuel shut-off valve
Rear fender
Evap canister
Seat hook
White marking
Yellow marking
Up
Face the
clamp end downward
Face the
clamp end to the left
Pass the
...
