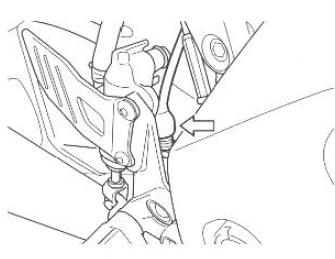

To adjust the brake light switch, hold the switch body and turn the adjuster so that the brake light will come on just before a pressure rise is felt when the brake pedal is depressed.
Pair system hose routing diagram
Pair control solenoid valve
Pair reed valve
White marking (hidden side)
Yellow marking
Blue marking
Red marking
Face the
clamp end to the top.
Make sure
the clamp is not contacted to the frame or air cleaner box.
90°
45°
15°
...
Front brake caliper disassembly and
assembly
Refer to “front brake caliper removal and installation” .
Note
the right and left calipers are installed
symmetrically and therefore the disassembly
procedure for one side is the same as that for
the other side.
Disassembly
Remove the brake pads (1) and spring from the
...
Air valve removal and installation
Removal
Remove the wheel assembly. Refer to “front wheel assembly removal and
installation” and “rear wheel assembly removal and installation” .
Remove the tire. Refer to “tire removal and installation” .
Remove the air valve (1) from the wheel.
Installation
Install th ...
