Suzuki GSX-R 1000 Service Manual: Specifications
Service data

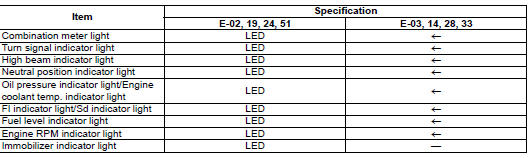

Wattage unit: w
Tightening torque specifications
Reference
: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .
Horn removal and installation
Removal
Disconnect the horn coupler (1).
Remove the horn (2) by removing the mounting
bolts.
Installation
Install the horn in the reverse order of removal. ...
Special tools and equipment
Special tool
...
Other materials:
Wheel balance check and adjustment
Check and adjust the wheel balance in the following
procedures:
removal the wheel assembly. Refer to “front wheel assembly removal and
installation” and “rear wheel assembly removal and installation” .
Remove the mounting drum from the rear wheel.
(For rear wheel) ref ...
Pair system hose routing diagram
Pair control solenoid valve
Pair reed valve
White marking (hidden side)
Yellow marking
Blue marking
Red marking
Face the
clamp end to the top.
Make sure
the clamp is not contacted to the frame or air cleaner box.
90°
45°
15°
...
Swingarm pivot boss removal and installation
Removal
Remove the swingarm. Refer to “swingarm removal and installation” .
Remove the swingarm pivot boss nut (1).
Note
remove the swingarm pivot boss only when
replacing it.
Remove the swingarm pivot boss (2) by removing its
set screws.
Installatio ...
