Diagnostic information and procedures

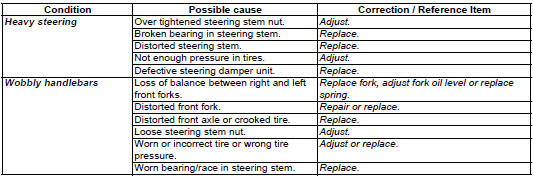

Steering symptom diagnosis

Suzuki GSX-R. Steering symptom diagnosis


Steering
Precautions Precautions for steering Refer to “general precautions” in section 00 (page 00-1). ...

Steering / handlebar
...

Other materials:

Front brake hose routing diagram
Hose clamp : clamp end should face downward. Stopper : after the brake hose union has contacted to the stopper, tighten the union bolt. Hose guide : pass the brake hose through the hose guide. Stopper : after positioning the clamp with the stopper ...

Ignition switch removal and installation
Removal Remove the air cleaner box. Refer to “air cleaner box removal and installation” in section 1d .  Disconnect the ignition switch lead wire coupler (1).  Disconnect the immobilizer lead wire coupler (2). (For e-02, 19, 24, 51) Remove the harness clamp (3). ...

Pair control solenoid valve removal and installation
Removal Lift and support the fuel tank with the prop stay. Refer to “fuel tank removal and installation” in section 1g .  Remove the air cleaner box. Refer to “air cleaner box removal and installation” in section 1d . Remove the pair control solenoid valve (1) along with the pair ...
