Suzuki GSX-R 1000 Service Manual: Exhaust control system operation

The excs is operated by the signal supplied from the ecm. The open/close operation of the excv is performed by the excva which is controlled by the ecm by changing the current direction of the actuator motor. The position sensor (incorporated in the excva) detects the excva movement by measuring the voltage and then the ecm determines the excv opening angle based on the engine rpm and gear positions. Every time the ignition switch is turned on, the excva automatically drives the excv and detects full close/open position voltages and sets the excv to middle position.

Full close

Suzuki GSX-R. Full close


Full open

Suzuki GSX-R. Full open

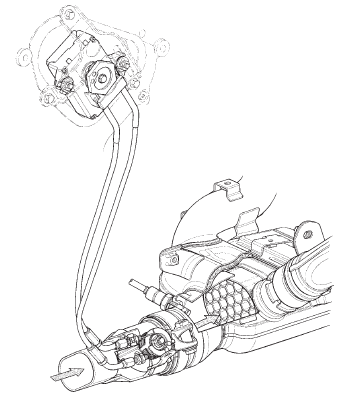

Exhaust control system description
The exhaust control system (excs) consists of the exhaust control valve (excv), exhaust control valve actuator (excva) and exhaust control valve cables (excv cables). Excv is installed in the ex ...
