Suzuki GSX-R 1000 Service Manual: Front brake master cylinder components

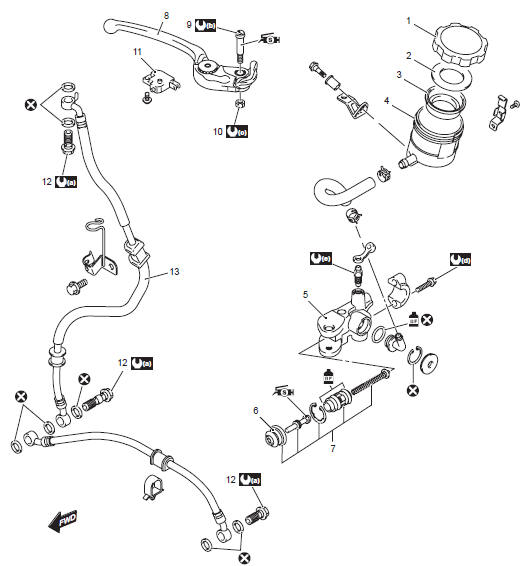

Suzuki GSX-R. Front brake master cylinder components



  1. Reservoir cap
  2. Plate
  3. Diaphragm
  4. Reservoir tank
  5. Master cylinder
  6. Dust boot
  7. Piston set
  8. Brake lever
  9. Brake lever pivot bolt
  10. Brake lever pivot bolt lock-nut
  11. Brake light switch
  12. Brake hose union bolt
  13. Brake hose
  14. 23 Nm (2.3 Kgf-m,
    16.5 Lbf-ft)
  15. 1 Nm
    (0.1 Kgf-m, 0.5 Lbf-ft)
  16. 6 Nm
    (0.6 Kgf-m, 4.5 Lbf-ft)
  17. 0 Nm
    (1.0 Kgf-m, 0.7 Lbf-ft)
  18. 6 Nm
    (0.6 Kgf-m, 4.5 Lbf-ft)

Apply brake fluid.


Apply silicone grease.


Do not reuse.
