Suzuki GSX-R 1000 Service Manual: Rear suspension components

Suzuki GSX-R 1000 Service Manual / Suspension / Rear suspension / Repair instructions / Rear suspension components

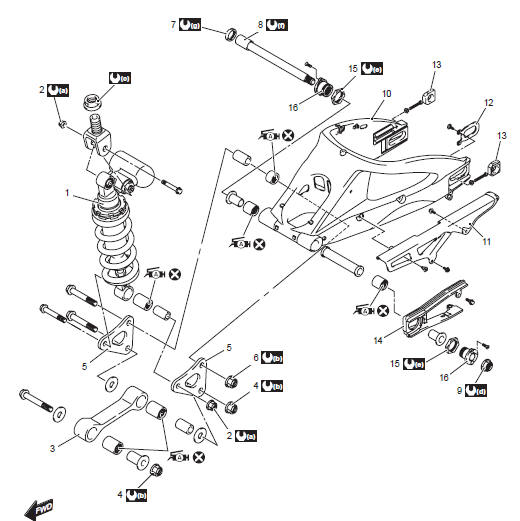

Suzuki GSX-R. Rear suspension components



  1. Rear shock absorber
  2. Rear shock absorber mounting nut
  3. Cushion rod
  4. Cushion rod mounting nut
  5. Cushion lever
  6. Cushion lever mounting nut
  7. Swingarm pivot lock-nut
  8. Swingarm pivot shaft
  9. Swingarm pivot nut
  10. Swingarm
  11. Chain case
  12. Plate
  13. Chain adjuster
  14. Chain buffer
  15. Swingarm pivot boss nut
  16. Swingarm pivot boss
  17. 50
    N·m (5.0 Kgf-m, 36.0 Lbf-ft)
  18. 98 N·m
    (9.8 Kgf-m, 71.0 Lbf-ft
  19. 115 N·m
    (11.5 Kgf-m, 83.0 Lbf-ft)
  20. 100 N·m
    (10.0 Kgf-m, 72.5 Lbf-ft)
  21. 65 N·m
    (6.5 Kgf-m, 47.0 Lbf-ft)
  22. 15 N·m
    (1.5 Kgf-m, 11.0 Lbf-ft)
  23. 90 N·m
    (9.0 Kgf-m, 65.0 Lbf-ft)

Apply grease to the
bearing
Do not reuse.
Repair instructions
...

Rear suspension assembly construction
Rear shock absorber mounting bolt (upper) Rear shock absorber mounting nut (lower) Cushion rod mounting nut (front) Cushion rod mounting nut (rear) Cushion lever mo ...
