Suzuki GSX-R 1000 Service Manual: Combination meter components

Suzuki GSX-R. Combination meter components

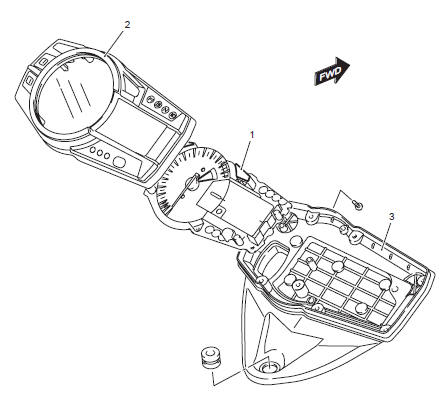

  1. Combination meter unit
  2. Combination meter case
  3. Combination meter cover
Repair instructions
...

Combination meter removal and installation
Removal Remove the combination meter mounting bolt (1). Bushing Disconnect the coupler (2) and remove the combination meter assembly (3). Installat ...
