Suzuki GSX-R 1000 Service Manual: Pillion footrest construction

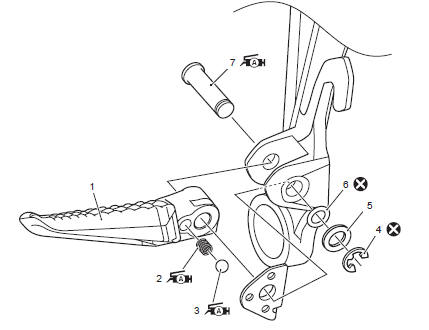

Suzuki GSX-R. Pillion footrest construction



  1. Pillion footrest
  2. Spring
  3. Ball
  4. E-ring
  5. Washer
  6. O-ring
  7. Footrest pin

Apply grease.


Do not reuse.

Side-stand construction
Frame Side-stand bracket Washer Side-stand 50 N·m (5.0 Kgf-m, 36.0 Lbf-ft) 40 N·m (4.0 Kgf-m, 29.0 Lbf-ft) Apply grease to sliding sur ...

Side-stand removal and installation
Removal Support the motorcycle with a jack or wooden block. Caution  do not support the motorcycle with the exhaust pipes.  Make sure that the motorcycle is supported s ...
