Suzuki GSX-R 1000 Service Manual: Special tools and equipment

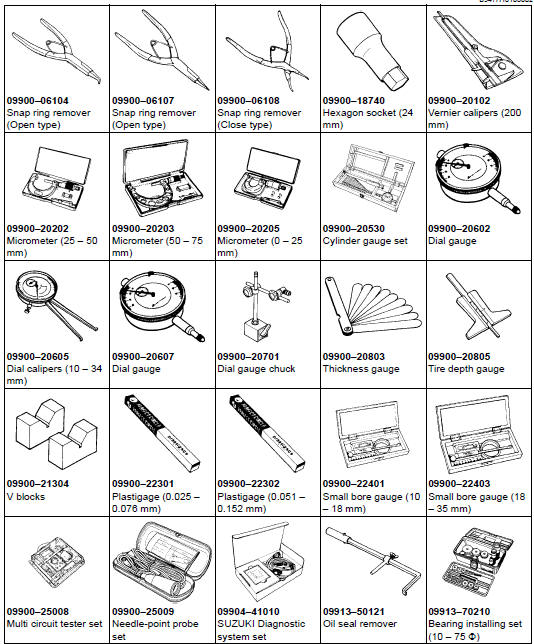

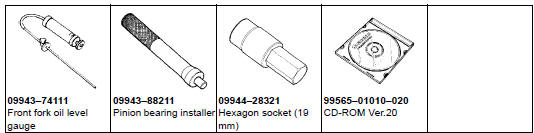

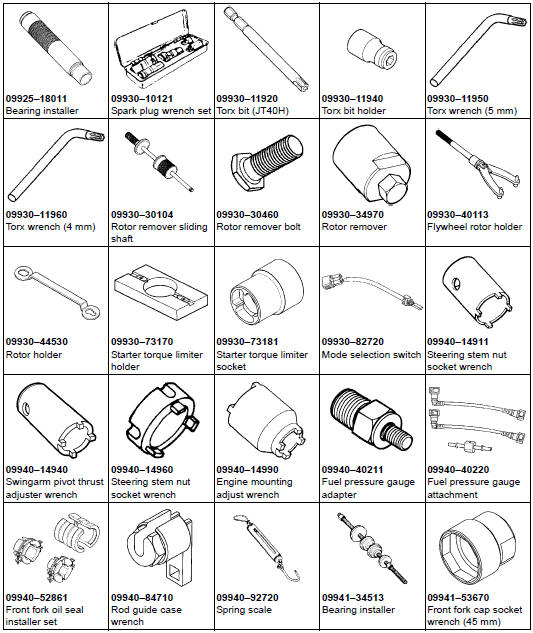

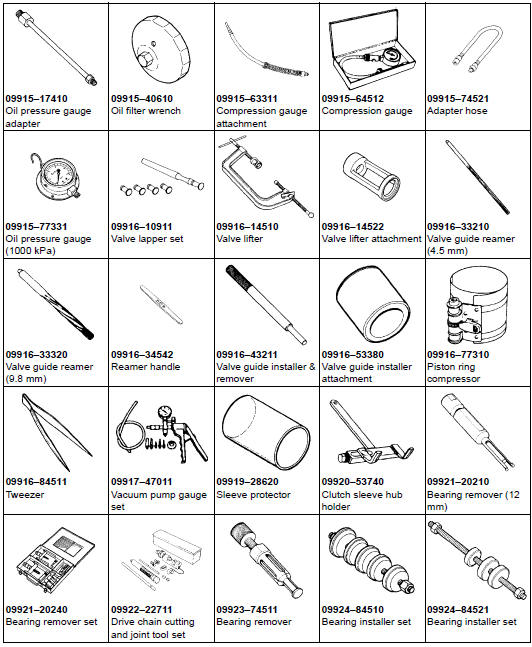

Special tool

Suzuki GSX-R. Special tool


Suzuki GSX-R. Special tool


Suzuki GSX-R. Special tool


Suzuki GSX-R. Special tool


Specifications
Specifications Note these specifications are subject to change without notice. Dimensions and dry mass Engine Drive train Chassis Electrical Capacities ...

Maintenance and lubrication
...

Other materials:

Cylinder head cover related parts inspection
Refer to “engine top side disassembly” . Refer to “engine top side assembly” . Refer to “cylinder head cover disassembly and assembly” . Cylinder head cover Clean and check the gasket grooves “a” and pair reed valve mating surfaces “b” of the cylinder head cover. If there is anything unu ...

Rear brake caliper disassembly and assembly
Refer to “rear brake caliper removal and installation” . Disassembly Remove the pad spring (1) and rubber boot (2) from the caliper. Place a rag over the piston to prevent it from popping out and then force out the piston using compressed air. Caution do not use hig ...

Rear wheel dust seal / bearing removal and installation
Removal Remove the rear wheel assembly. Refer to “rear wheel assembly removal and installation” .  Remove the rear sprocket mounting drum assembly (1) from the rear wheel. Remove the wheel dampers (2). Remove the dust seal. Special tool (a): 09913–50121 (oil s ...
