Suzuki GSX-R 1000 Service Manual: Specifications
Specifications
| Note these specifications are subject to change without notice. |
Dimensions and dry mass

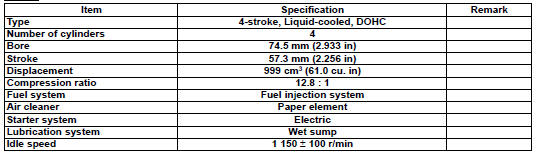

Engine

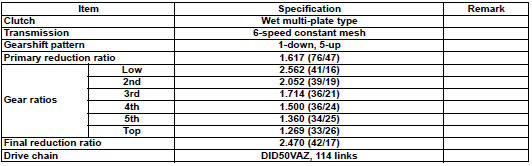

Drive train

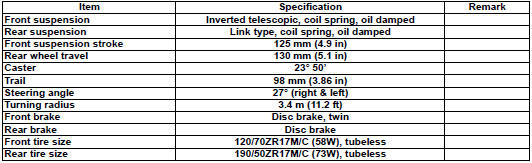

Chassis

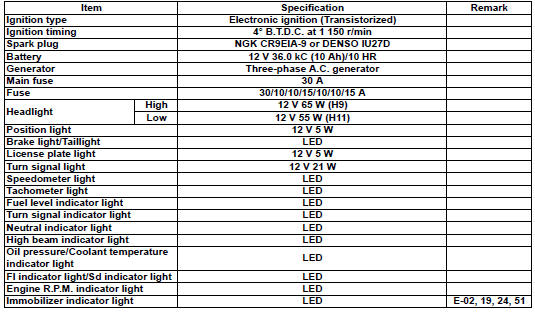

Electrical
Capacities
Component location
Electrical components location
Ignition switch/immobilizer antenna
Iat sensor
Secondary fuel injector
Primary fuel injector
Iap sensor
Evap system purge contro ...
Special tools and equipment
Special tool
...
Other materials:
Wiring harness routing diagram
Wiring harness no. 2
Tapping clamp
: insert the clamp from the front side. Place the turn signal
and position light couplers in front of the clamp.
Steel clamp
: clamp the wiring harness at the blue taping point. Bend
the steel clamps to the front side.
...
Throttle cable routing diagram
Throttle cable no. 1
Throttle cable no. 2
Clutch cablev
Front brake hose
Pass
the throttle cables in front of the front brake hose.
Pass the
clutch cable above the right air intake pipe.
Clamp the
clutch cable at the white taping point and m ...
Swingarm bearing removal and installation
Removal
Remove the swingarm. Refer to “swingarm removal and installation” .
Remove the swingarm pivot bearings (1) using the
special tool.
Special tool
(a):
09921–20240 (bearing remover set)
Remove the center spacer (2).
Remove the cushion lever bearing (3) usin ...
