Suzuki GSX-R 1000 Service Manual: Specifications

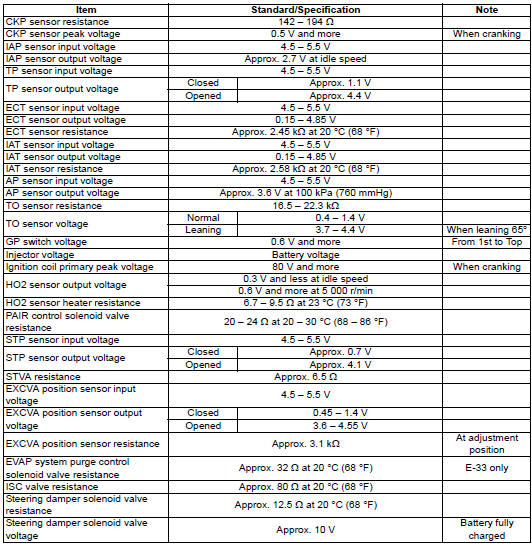

Service data
Injector + fuel pump + fuel pressure regulator
Fi sensors
DTC “c93” (p1769): steering damper
solenoid valve circuit malfunction
Detected condition and possible cause
Detected condition
Possible cause
C93
Steering damper control current does not flow to
the solenoid valve. With ig turned on ...
Special tools and equipment
Special tool
...
Other materials:
Schematic and routing diagram
Cooling circuit diagram
Water hose routing diagram
Thermostat air bleeder hole
Cushion
O-ring
Radiator heat guard
: be careful not to damage the pawls when removing.
Yellow
marking
White
marking
Clamp end
should face downward
...
Schematic and routing diagram
Fuel tank drain hose and breather hose routing diagram
Fuel tank water drain hose
Fuel tank breather hose no. 1
Fuel tank breather hose no. 2
Fuel tank breather hose no. 3
3-Way joint
Frame
White marking
Set the
hose end to the root of tank nippl ...
Headlight removal and installation
Removal
Remove the body cowling assembly. Refer to “exterior parts removal and
installation” in section 9d .
Remove the air intake pipes (1). Refer to “exterior parts removal and
installation” in section 9d .
Remove the wiring harness no. 2 (2) By
disconnecting the couplers and ...
