Service data
Injector + fuel pump + fuel pressure regulator

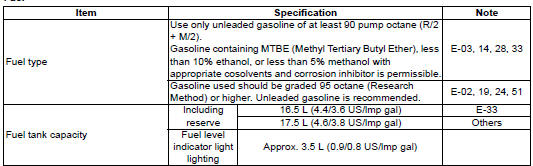

Fuel
Tightening torque specifications
Note the specified tightening torque is described in the following. “Fuel pump components” |
Reference
: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .
Specifications
Service data
Suspension
unit: mm (in)
Tightening torque specifications
Note
the specified tightening torque is described in the following.
“Front fork components”
Reference: for the tightening torque of fastener not specified in this
section, refer to “tightening ...
Schematic and routing diagram
Cooling circuit diagram
Water hose routing diagram
Thermostat air bleeder hole
Cushion
O-ring
Radiator heat guard
: be careful not to damage the pawls when removing.
Yellow
marking
White
marking
Clamp end
should face downward
...
Front wheel assembly construction
Brake disc bolt
Brake caliper mounting bolt
Front axle bolt
Front axle pinch bolt
Clearance
18 N·m (1.8 Kgf-m,
13.0 Lbf-ft)
39 N·m
(3.9 Kgf-m, 28.0 Lbf-ft)
100 N·m
(10 kgf-m, 72.5 Lbf-ft)
23 N·m
(2.3 Kgf-m, 16.5 Lbf-ft)
...
