Suzuki GSX-R 1000 Service Manual: Body frame construction

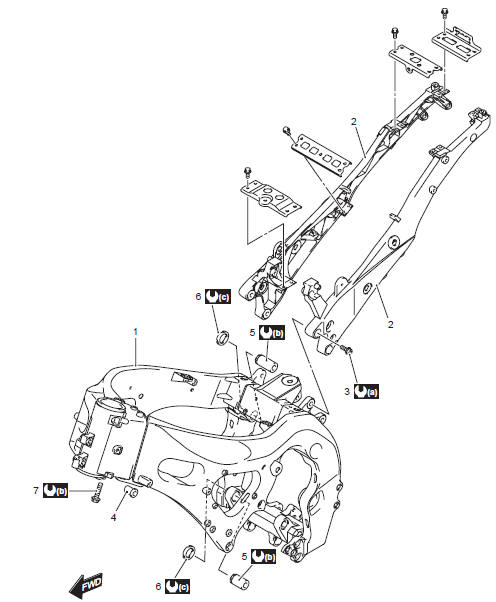

Suzuki GSX-R. Body frame construction


  1. Frame
  2. Seat rail
  3. Seat rail bolt
  4. Collar
  5. Engine mounting thrust adjuster
  6. Engine mounting thrust adjuster lock-nut
  7. Engine mounting pinch bolt
  8. 50 N·m (5.0 Kgf-m,
    36.0 Lbf-ft)
  9. 23 N·m
    (2.3 Kgf-m, 16.5 Lbf-ft)
  10. 45 N·m
    (4.5 Kgf-m, 32.5 Lbf-ft)
Repair instructions
...

Front footrest bracket construction
Footrest bracket bolt Rear brake master cylinder mounting bolt Footrest guard bolt Footrest bracket no. 1 (Lh) Footrest bracket no. 1 (Rh) Footrest Footrest ...
