Suzuki GSX-R 1000 Service Manual: Frame cover construction

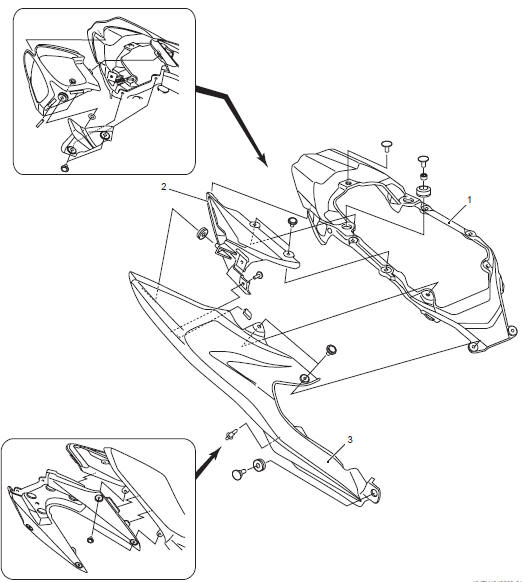

Suzuki GSX-R. Frame cover construction


  1. Frame cover (center)
  2. Frame cover (rear), lh/rh
  3. Frame cover (lh/rh)
