Suzuki GSX-R 1000 Service Manual: Rear view mirror construction

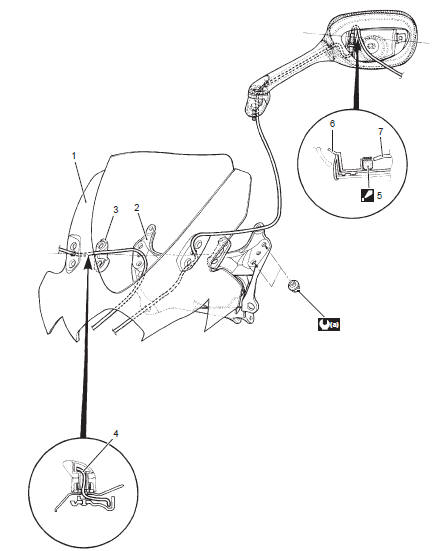

Suzuki GSX-R. Rear view mirror construction


  1. Body cowling
  2. Cowling brace
  3. Cushion
  4. Turn signal lead wire
  5. Turn signal lead
    wire coupler : locate the turn signal lead wire coupler (5) between the mirror cover (6) and mirror body (7).
  6. Mirror cover
  7. Mirror body

  8. 10 Nm (1.0 Kgf-m, 7.0 Lbf-ft)
