Suzuki GSX-R 1000 Service Manual: Tightening torque list

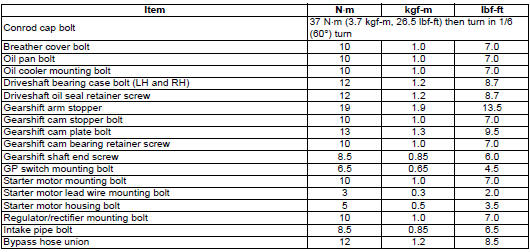

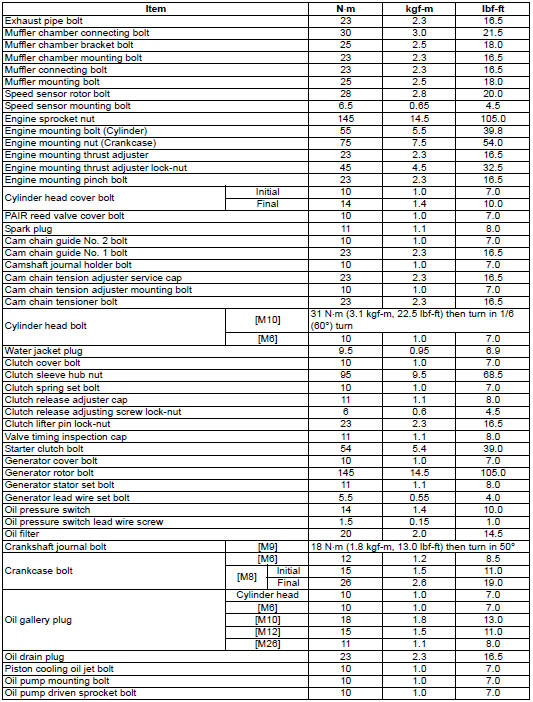

Engine

Suzuki GSX-R. Engine


Suzuki GSX-R. Engine

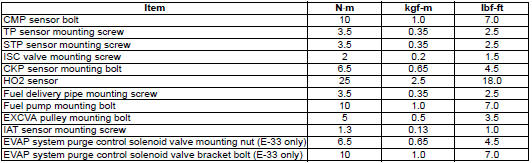

Fi system + intake air system

Suzuki GSX-R. Fi system + intake air system

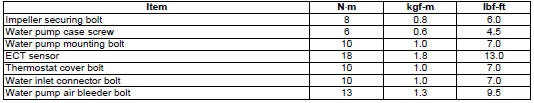

Cooling system

Suzuki GSX-R. Cooling system

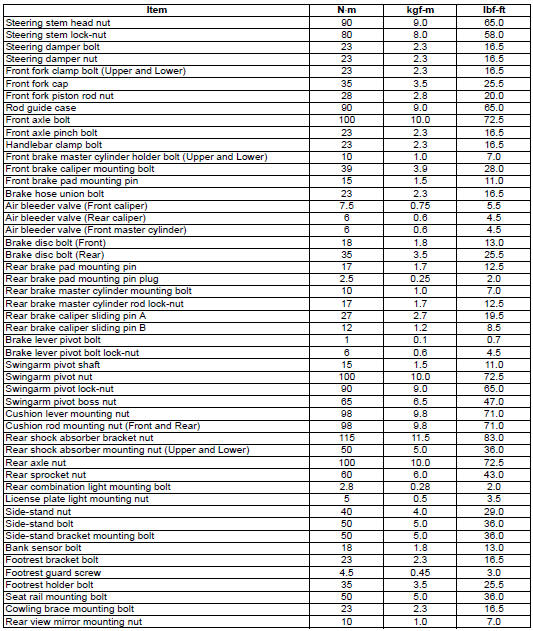

Chassis

Suzuki GSX-R. Chassis


Tightening torque chart

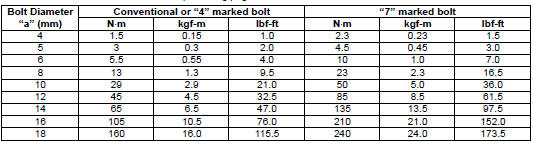

For other bolts and nuts not listed in the preceding page, refer to this chart:

Suzuki GSX-R. Tightening torque chart


Suzuki GSX-R. Tightening torque chart


Suzuki GSX-R. Tightening torque chart


Suzuki GSX-R. Tightening torque chart


  1. Conventional bolt
  2. “4” Marked bolt
  3. “7” Marked bolt
Specifications
