Suzuki GSX-R 1000 Service Manual: Front brake components

Suzuki GSX-R 1000 Service Manual / Brake / Front brakes / Repair instructions / Front brake components

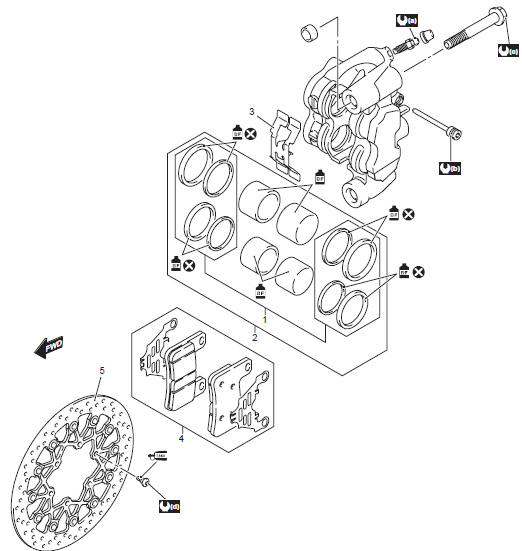

Suzuki GSX-R. Front brake components



  1. Seal set
  2. Piston and seal set
  3. Brake pad spring
  4. Brake pad set
  5. Front brake disc
  6. 7.5
    N·m (0.75 Kgf-m, 5.5 Lbf-ft)
  7. 15 N·m (1.5
    Kgf-m, 11.0 Lbf-ft)
  8. 39 N·m (3.9
    Kgf-m, 28.0 Lbf-ft)
  9. 18 N·m (1.8
    Kgf-m, 13.0 Lbf-ft)

Apply thread lock to the
thread part.

Apply brake fluid.


Do not reuse.
Repair instructions
...

Front brake pad inspection
The extent of brake pads wear can be checked by observing the grooved limit line “a” on the pads. When the wear exceeds the grooved limit line, replace the pads with new ones. Refer to “front brak ...
