Suzuki GSX-R 1000 Service Manual: Fuel injection system description

Gsx-r1000 motorcycles are equipped with a fuel injection system for emission level control. This fuel injection system is precision designed, manufactured and adjusted to comply with the applicable emission limits. With varying engine conditions, all of the fuel injection volumes are precisely controlled by the programmed injection maps in the ecm to reduce co, nox and hc. Adjusting, interfering with, improper replacement, or resetting of any of the fuel injection components may adversely affect injection performance and cause the motorcycle to exceed the exhaust emission level limits.

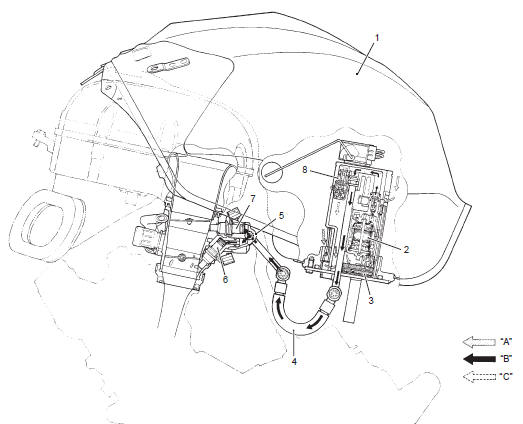

Suzuki GSX-R. Fuel injection system description


  1. Fuel tank
  2. Fuel pump
  3. Fuel mesh filter
  4. Fuel feed hose
  5. Fuel delivery pipe
  6. Primary fuel injector
  7. Secondary fuel injector
  8. Fuel pressure regulator
  9. Pre-pressurized fuel
  10. Pressurized fuel
  11. Relieved fuel
General description
...

Crankcase emission control system description
The engine is equipped with a pcv system to prevent discharging crankcase emissions into the atmosphere. Blow-by gas in the engine is constantly drawn into the crankcase, which is returned to the ...
