Suzuki GSX-R 1000 Service Manual: Rear brake pedal construction

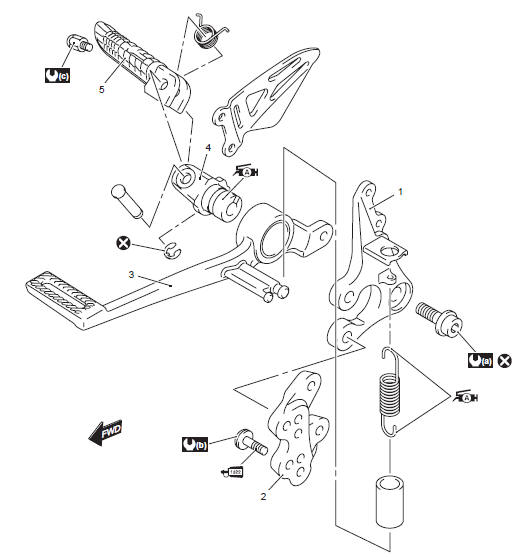

Suzuki GSX-R. Rear brake pedal construction



  1. Footrest bracket no. 2
  2. Footrest bracket no. 1
  3. Rear brake peda
  4. Footrest holder
  5. Footrest
  6. 35 Nm (3.5 Kgf-m,
    25.5 Lbf-ft)
  7. 23 Nm
    (2.3 Kgf-m, 16.5 Lbf-ft)
  8. 18 Nm
    (1.8 Kgf-m, 13.0 Lbf-ft)

Apply grease.


Apply thread lock to the
thread part.

Do not reuse.

Rear brake master cylinder parts inspection
Refer to rear brake master cylinder disassembly and assembly . Master cylinder Inspect the master cylinder bore for any scratches or other damage. Piston / rubber parts Inspect the piston s ...

Rear brake pedal removal and installation
Removal Remove the master cylinder assembly. Refer to rear brake master cylinder assembly removal and installation .  Disconnect the rear brake light switch lead wire coupler. Refer to ...
