Suzuki GSX-R 1000 Service Manual: Special tools and equipment

Recommended service material

Suzuki GSX-R. Recommended service material


Note

required service material is also described in the following.

“Drive chain related components”

Special tool

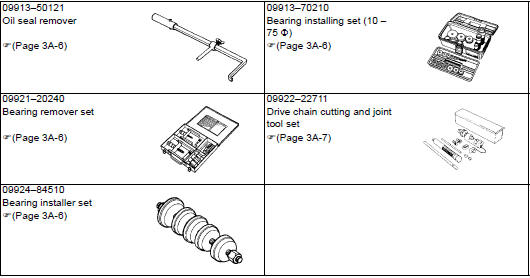

Suzuki GSX-R. Special tool


Specifications
Service data Drive train unit: mm (in) except ratio Tightening torque specifications Note the specified tightening torque is described in the following. “Drive chain related ...

Brake
...

Other materials:

Gearshift shaft / gearshift cam plate components
Gearshift shaft Gearshift cam drive plate Gearshift cam plate Gearshift cam stopper 19 N·m (1.9 Kgf-m, 13.5 Lbf-ft) 13 N·m (1.3 Kgf-m, 9.5 Lbf-ft) 8.5 N·m (0.85 Kgf-m, 6.0 Lbf-ft) Apply grease to oil seal lip. Apply thread l ...

Crankcase breather (pcv) hose / reed valve / cover removal and installation
Removal Lift and support the fuel tank with the prop stay. Refer to “fuel tank removal and installation” in section 1g .  Remove the air cleaner box. Refer to “air cleaner box removal and installation” in section 1d .  Disconnect the crankcase breather (pcv) hose (1). ...

Sprocket mounting drum dust seal / bearing removal and installation
Removal Remove the rear wheel assembly. Refer to “rear wheel assembly removal and installation” in section 2d .  Remove the rear sprocket mounting drum assembly (1). Refer to “rear sprocket / rear sprocket mounting drum removal and installation” (page 3a- 3). Remove the ...
