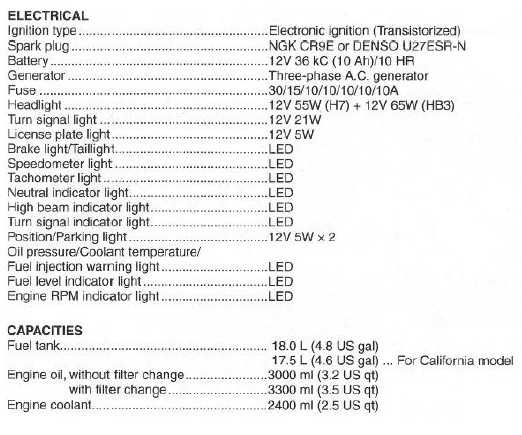

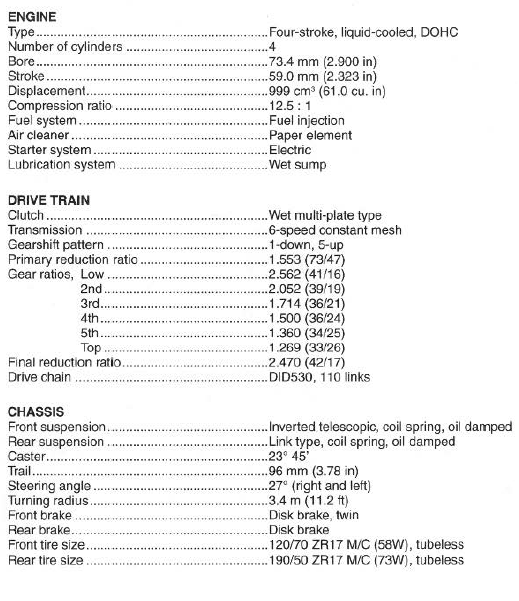

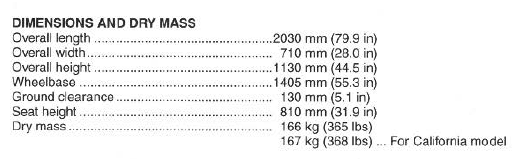

Suzuki GSX-R 1000 Owners Manual: Specifications
Location of labels
Read and follow all of the warnings
labeled on your motorcycle.
Make sure you understand all of
the labels. Keep the labels on
your motorcycle. Do not remove
them for any reason.
1
...
Other materials:
Swingarm pivot boss removal and installation
Removal
Remove the swingarm. Refer to “swingarm removal and installation” .
Remove the swingarm pivot boss nut (1).
Note
remove the swingarm pivot boss only when
replacing it.
Remove the swingarm pivot boss (2) by removing its
set screws.
Installatio ...
Countershaft gear / driveshaft gear
disassembly and assembly
Refer to “transmission removal” and “transmission installation” .
Disassembly
Caution
identify the position of each removed part.
Organize the parts in their respective groups
(i.E., Drive or driven) so that they can be
reinstalled in their original positions.
Counte ...
Rear suspension assembly construction
Rear shock absorber mounting bolt (upper)
Rear shock absorber mounting nut (lower)
Cushion rod mounting nut (front)
Cushion rod mounting nut (rear)
Cushion lever mounting nut
Swingarm pivot nut
Swingarm pivot boss nut
Swingarm pivot shaft
Swingarm ...
