Suzuki GSX-R 1000 Service Manual: Water pump components

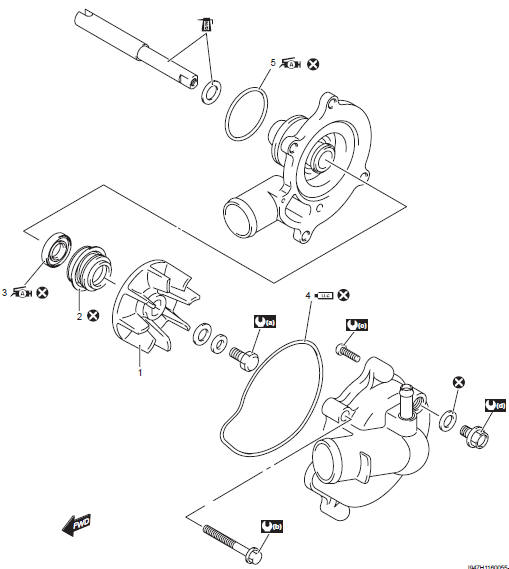

Suzuki GSX-R. Water pump components



  1. Impeller
  2. Mechanical seal
  3. Oil seal
  4. O-ring
  5. O-ring
  6. 8
    N·m (0.8 Kgf-n, 6.0 Ib-ft)
  7. 10 N·m
    (1.0 Kgf-n, 7.0 Ib-ft)
  8. 6 N·m (0.6
    Kgf-n, 4.5 Ib-ft)
  9. 13 N·m
    (1.3 Kgf-n, 9.5 Ib-ft)

Apply grease.


Apply engine coolant.


Apply molybdenum oil
solution.

Do not reuse.
