Suzuki GSX-R 1000 Service Manual: Specifications

Service data

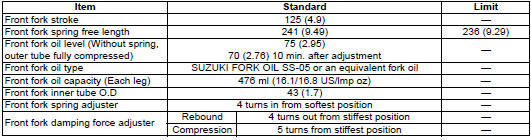

Suspension unit: mm (in)

Suzuki GSX-R. Service data

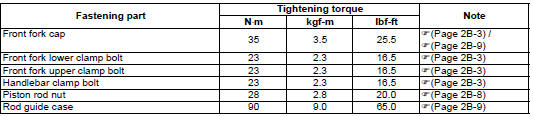

Tightening torque specifications

Suzuki GSX-R. Tightening torque specifications


Note

the specified tightening torque is described in the following.

Front fork components

Reference

: for the tightening torque of fastener not specified in this section, refer to tightening torque list in section 0c .

Rod guide case tightening torque
Tighten the rod guide case in the following procedures: measure the effective length l of the torque wrench. Calculate the reading torque on the torque wrench by use of the formula shown below. ...

Special tools and equipment
Recommended service material Note required service material is also described in the following. Front fork components Special tool ...

Other materials:

Rear seat
The seat lock is located under the left frame cover. To remove the rear seat, insert the ignition key into the lock and turn it clockwise. Raise the front end of the seat and slide it forward. To reinstall the seat, slide the seat hooks into the seat hook retainers and push down firm ...

Cylinder head cover disassembly and assembly
Disassembly Remove the cylinder head cover. Refer to engine top side disassembly .  Remove the gaskets (1) and (2). Remove the pair control solenoid valve (3) along with the pair reed valve covers (4). Remove the pair reed valves (5) and cmp sensor (6). As ...

Balancer shaft disassembly and assembly
Refer to engine bottom side disassembly (page 1d- 49). Refer to engine bottom side assembly . Disassembly Remove the balancer shaft. Refer to engine bottom side disassembly .  Remove the washers, balancer gear and dampers from the shaft. Assembly Assembly is in the re ...
