Suzuki GSX-R 1000 Service Manual: Vehicle side view

Note

difference between illustrations and actual motorcycles may exist depending on the markets.

Suzuki gsx-r1000 (2009-model)

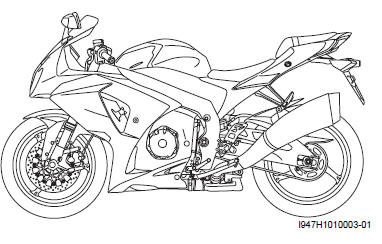

Suzuki GSX-R. Right side
Right side

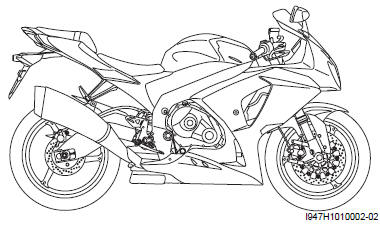

Suzuki GSX-R. Left side
Left side

Symbols
Listed in the table below are the symbols indicating instructions and other information necessary for servicing. The meaning of each symbol is also included in the table. Abbreviations A: ...

Vehicle identification number
The frame serial number or V.I.N. (Vehicle identification number) “a” is stamped on the right side of the steering head tube. The engine serial number “b” is located on the lower crankcase. These n ...
