Suzuki GSX-R. Drive chain related components

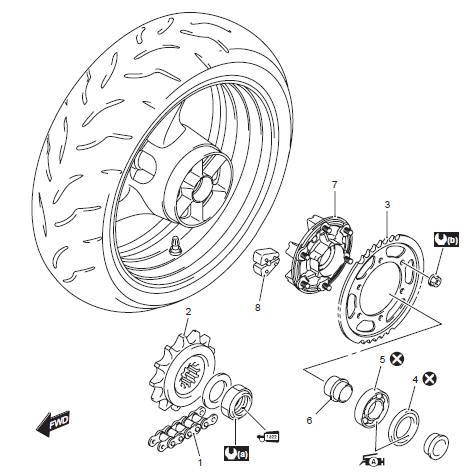

  1. Drive chain
  2. Engine sprocket
  3. Rear sprocket
  4. Dust seal
  5. Bearing
  6. Retainer
  7. Sprocket mounting drum
  8. Wheel damper
  9. 145 N·m (14.5 Kgf-m,
    105.0 Lbf-ft)
  10. 60 N·m
    (6.0 Kgf-m, 43.0 Lbf-ft)

Apply grease
Apply thread lock to
thread part.

Do not reuse.
Repair instructions
...

Engine sprocket removal and installation
Removal Remove the gearshift link arm (1) from the gearshift shaft. Note mark the gearshift shaft head at which the gearshift link arm slit set for correct reinstallation. ...
