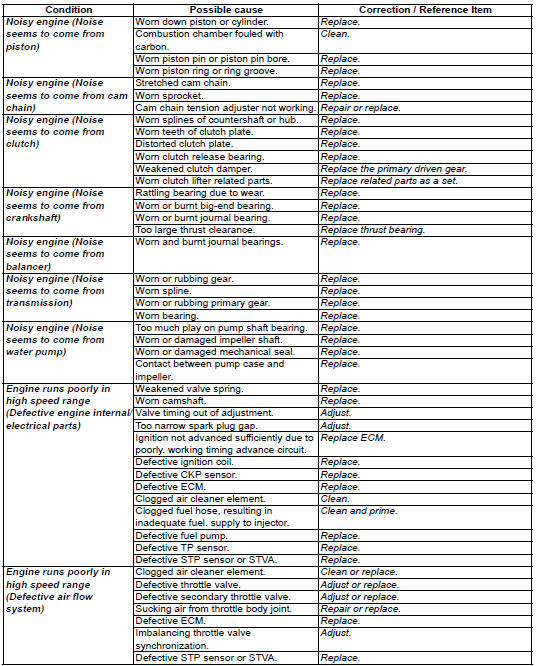

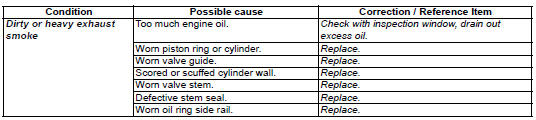

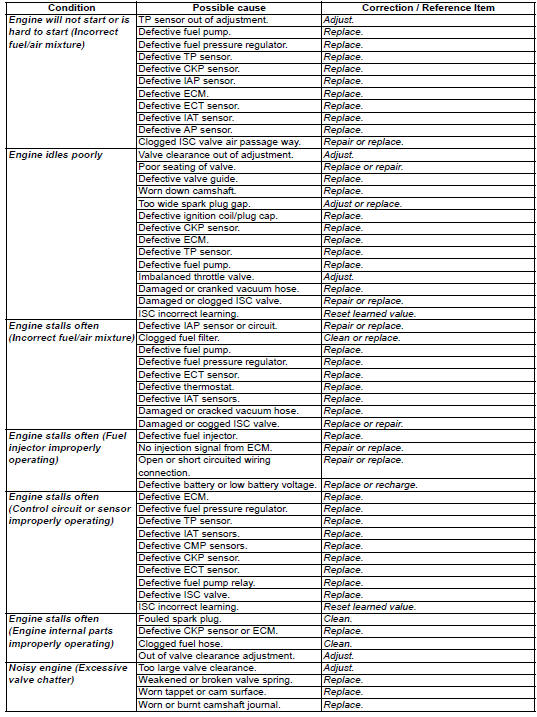

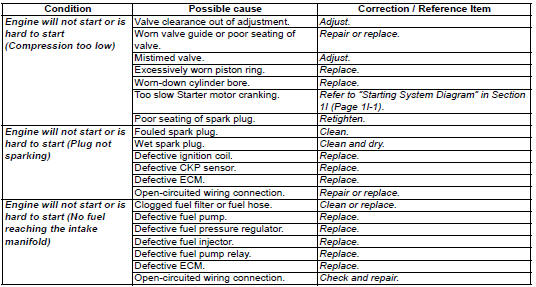

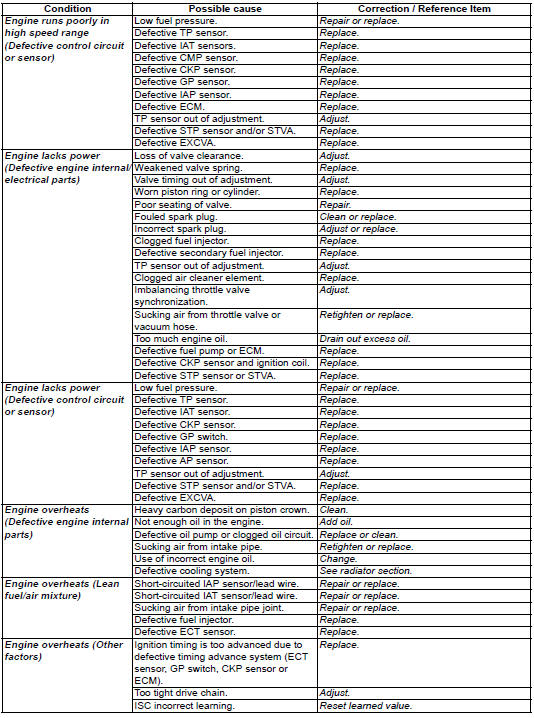

Suzuki GSX-R 1000 Service Manual: Engine symptom diagnosis

Suzuki GSX-R. Engine symptom diagnosis


Suzuki GSX-R. Engine symptom diagnosis


Suzuki GSX-R. Engine symptom diagnosis


Suzuki GSX-R. Engine symptom diagnosis


Suzuki GSX-R. Engine symptom diagnosis


Diagnostic information and procedures
...

Self-diagnostic procedures
Use of mode select switch Note  do not disconnect the coupler from ecm, battery cable from battery, ecm ground wire from engine or main fuse before confirming dtc (diagnos ...
