Suzuki GSX-R 1000 Service Manual: Front turn signal light components

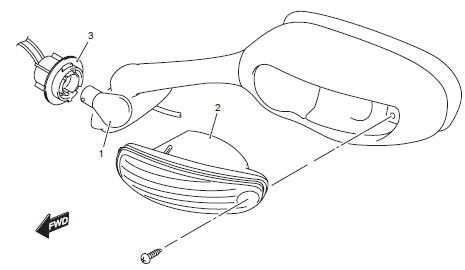

Suzuki GSX-R. Front turn signal light components


  1. Turn signal light bulb (12 v 21 w)
  2. Front turn signal light
  3. Socket
Headlight beam adjustment
Adjust the headlight beam, both horizontally and vertically. Note  to adjust the headlight beam, adjust the beam horizontally first, then vertically.  It is not necessar ...

Front turn signal light removal and installation
Removal Remove the screw. Disconnect the front turn signal coupler (1).  Remove the turn signal light assembly (2). Installation Install the front turn signal light in the ...
