Suzuki GSX-R 1000 Service Manual: Gearshift shaft construction

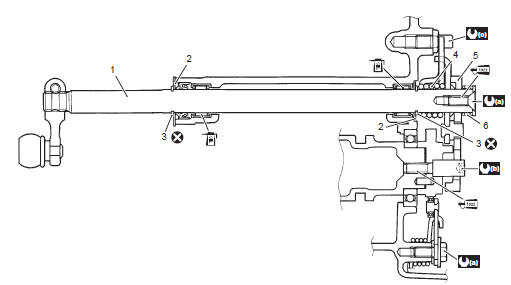

Suzuki GSX-R. Gearshift shaft / gearshift cam plate components



  1. Gearshift shaft
  2. Washer
  3. Snap ring
  4. Gearshift shaft return spring
  5. Gearshift cam drive plate
  6. Gearshift plate return spring
  7. 8.5 N·m (0.85 Kgf-m,
    6.0 Lbf-ft)
  8. 13 N·m
    (1.3 Kgf-m, 9.5 Lbf-ft)
  9. 19 N·m
    (1.9 Kgf-m, 13.5 Lbf-ft)

Apply grease.


Apply thread lock to the
thread part.

Apply thread lock to the
thread part.

Apply engine oil to
bearing.

Do not reuse.

Gearshift shaft / gearshift cam plate components
Gearshift shaft Gearshift cam drive plate Gearshift cam plate Gearshift cam stopper 19 N·m (1.9 Kgf-m, 13.5 Lbf-ft) 13 N·m (1.3 Kgf-m, 9.5 Lbf-ft) ...

Gearshift shaft / gearshift cam plate removal and installation
Removal Remove the engine sprocket cover. Refer to “engine sprocket removal and installation” in section 3a .  Remove the clutch components. Refer to “clutch removal” in section 5c . & ...
