Suzuki GSX-R 1000 Owners Manual: Helmet holders

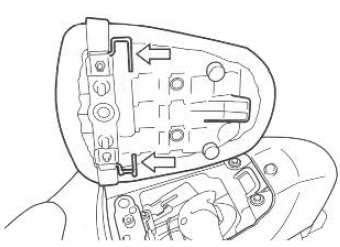

This motorcycle has helmet holders underneath the rear seat.
Hook your helmet on the helmet holder and lock the seat.
 Warning
Never carry a helmet fastened to the helmet holder. Fix the helmet securely atop the seat if you must carry it. |
Rear seat
The seat lock is located under the
left frame cover. To remove the
rear seat, insert the ignition key
into the lock and turn it clockwise.
Raise the front end of the seat
and slide it forward ...
Side stand
An interlock switch is provided to
cut off the ignition circuit when the
side stand is down and the transmission
is in any gear other than
neutral.
The side stand/ignition interlock
switch w ...
