Suzuki GSX-R 1000 Service Manual: Specifications

Service data

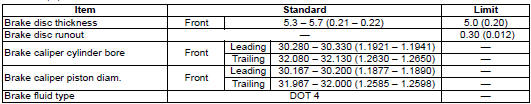

Brake unit: mm (in)

Suzuki GSX-R. Service data


Tightening torque specifications

Suzuki GSX-R. Tightening torque specifications


Note

the specified tightening torque is described in the following.

“Front brake components”

Reference

: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .

Front brake disc inspection
Brake disc thickness Check the brake disc for damage or cracks and measure the thickness using the micrometer. Replace the brake disc if the thickness is less than the service limit or if defect ...

Special tools and equipment
Recommended service material Note required service material is also described in the following. “Front brake components” Special tool ...

Other materials:

Front brake master cylinder components
Reservoir cap Plate Diaphragm Reservoir tank Master cylinder Dust boot Piston set Brake lever Brake lever pivot bolt Brake lever pivot bolt lock-nut Brake light switch Brake hose union bolt Brake hose 23 N·m (2.3 Kgf-m, ...

Cylinder inspection
Refer to “engine top side disassembly” . Refer to “engine top side assembly” . Cylinder distortion Check the gasket surface of the cylinder for distortion. Use a straightedge and thickness gauge. Take clearance readings at several places. If any reading exceeds the service limit, replace t ...

Air bleeding from brake fluid circuit
Air trapped in the brake fluid circuit acts like a cushion to absorb a large proportion of the pressure developed by the master cylinder and thus interferes with the full braking performance of the brake caliper. The presence of air is indicated by “sponginess” of the brake lever and also by la ...
