Suzuki GSX-R 1000 Owners Manual: Spring pre-load adjustment

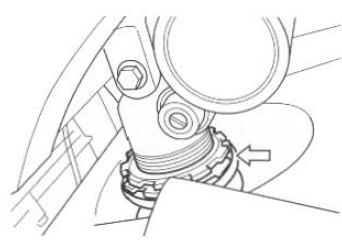

The adjustment can be performed by changing the adjuster ring position. However, suzuki recommends that this adjustment be done by your authorized suzuki dealer, since a special tool is needed for this job.
Rear suspension
...
Damping force adjustment
The rebound and compression
damping force can be individually
adjusted by turning the respective
adjusters. The rebound damping
force adjuster 1 is located at the
bottom of the rear suspension.
...
