Suzuki GSX-R 1000 Service Manual: Steering components

Suzuki GSX-R. Handlebars inspection

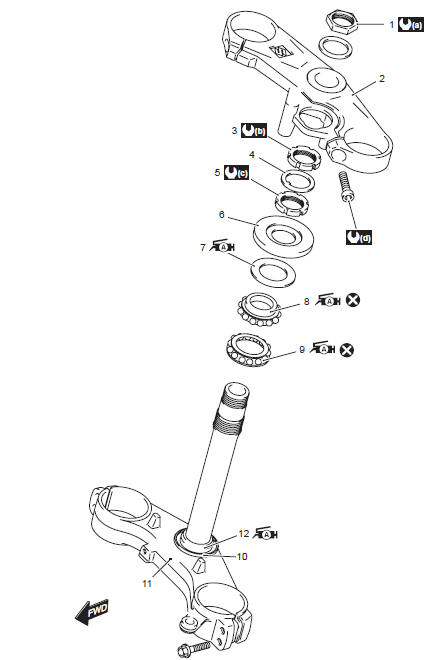

  1. Steering stem head nut
  2. Steering stem upper bracket
  3. Steering stem lock-nut
  4. Washer
  5. Steering stem nut
  6. Dust seal cover
  7. Dust seal
  8. Steering stem upper bearing
  9. Steering stem lower bearing
  10. Lower seal
  11. Steering stem lower bracket
  12. Steering stem lower bearing inner race
  13. 90
    N·m (9.0 Kgf-m, 65.0 Lbf-ft)
  14. 80 N·m
    (8.0 Kgf-m, 58.0 Lbf-ft)
  15. 45 N·m
    (4.5 Kgf-m, 32.5 Lbf-ft) then turn back 1/2 – 1/4
  16. 23 N·m
    (2.3 Kgf-m, 16.5 Lbf-ft)

Apply grease.


Do not reuse.

Handlebars inspection
Refer to “handlebar removal and installation” (page 6b- 2). Inspect the handlebars for distortion and damage. If any defect is found, replace the handlebar with a new one. ...

Steering damper construction
Steering damper Dust seal Bearing 23 N·m (2.3 Kgf-m, 16.5 Lbf-ft) Apply grease. ...
