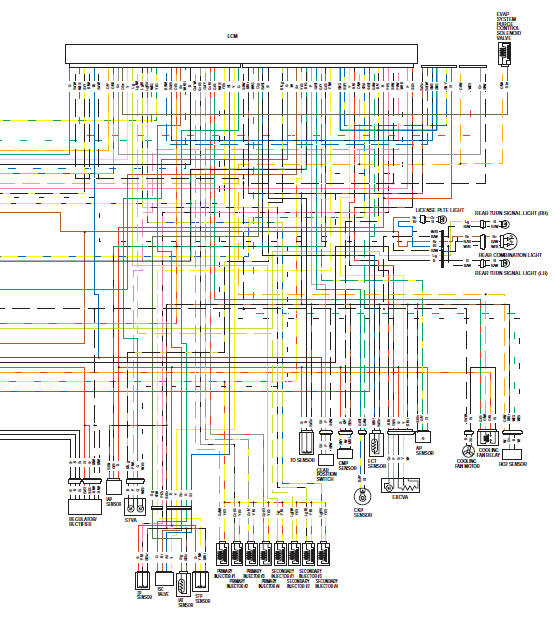

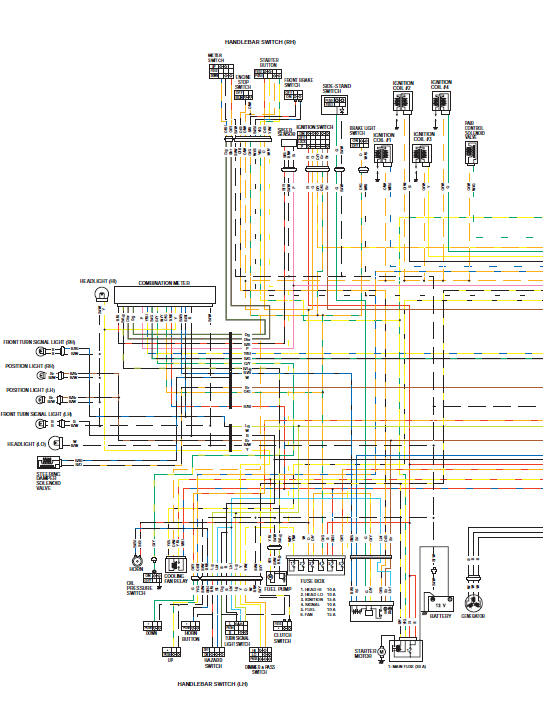

Suzuki GSX-R 1000 Service Manual: Wiring diagram
Refer to “wire color symbols” in section 0a .
For e-02, 19, 24, 51
For e-03, 28
For e-14, 33
Wiring harness routing diagram
Wiring harness no. 2
Tapping clamp
: insert the clamp from the front side. Place the turn signal
and position light couplers in front of the clamp.
Steel clamp
...
Other materials:
Stp sensor removal and installation
Removal
Remove the throttle body. Refer to “throttle body
removal and installation” in section 1d (page 1d-
10).
Remove the stp sensor (1) with the special tool.
Special tool
: 09930–11950 (torx wrench (5 mm))
Note
prior to disassembly, mark the stp sensor’s
origina ...
Ignition switch
The ignitionr switch has 4 positions:
"Off" position
All electrical circuits are cut off.
The engine will not start. The key
can be removed.
"On" position
The ignition circuit is completed
and the engine can run. The
headlight and taillight will automatically
turn ...
Front brake pad inspection
The extent of brake pads wear can be checked by observing the grooved limit
line “a” on the pads. When the wear exceeds the grooved limit line, replace the
pads with new ones. Refer to “front brake pad replacement” .
Caution
replace the brake pad as a set, otherwise
braking perform ...
