Suzuki GSX-R 1000 Service Manual: Diagnostic information and procedures

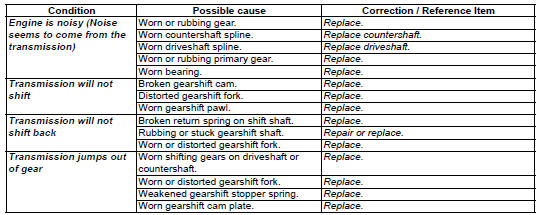

Manual transmission symptom diagnosis

Suzuki GSX-R. Manual transmission symptom diagnosis


Manual transmission
...

Repair instructions
...

Other materials:

Throttle cable routing diagram
Throttle cable no. 1 Throttle cable no. 2 Clutch cablev Front brake hose Pass the throttle cables in front of the front brake hose. Pass the clutch cable above the right air intake pipe. Clamp the clutch cable at the white taping point and m ...

Gearshift shaft / gearshift cam plate removal and installation
Removal Remove the engine sprocket cover. Refer to “engine sprocket removal and installation” in section 3a .  Remove the clutch components. Refer to “clutch removal” in section 5c .  Remove the snap ring (1) and washer (2) from the gearshift shaft. Special tool : 09900–06 ...

Damping force adjustment
The rebound and compression damping force can be individually adjusted by turning the respective adjusters. The rebound damping force adjuster 1 is located at the bottom of the rear suspension. The compression damping force adjuster 2 is located at the left side of the motorcycle. To ad ...
