Suzuki GSX-R 1000 Service Manual: Front fork components

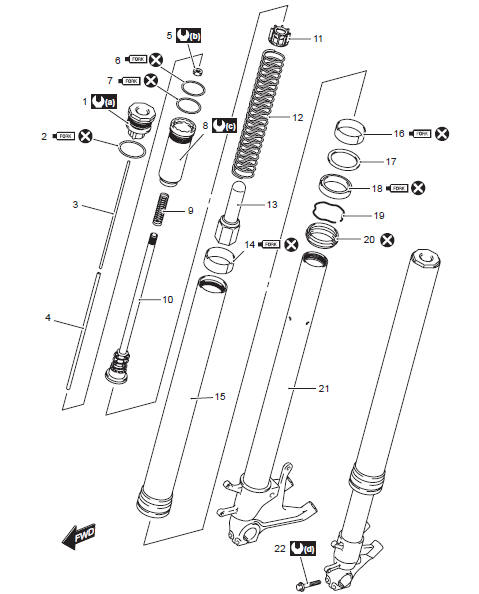

Suzuki GSX-R. Front fork components



  1. Front fork cap
  2. O-ring
  3. Rebound damping force adjuster rod
  4. Compression damping force adjuster rod
  5. Piston rod nut
  6. O-ring
  7. Piston ring
  8. Rod guide case
  9. Spring
  10. Piston rod
  11. Spring collar b
  12. Spring
  13. Spring collar a
  14. Slide bushing
  15. Outer tube
  16. Guide bushing
  17. Oil seal spacer
  18. Oil seal
  19. Stopper ring
  20. Dust seal
  21. Inner tube
  22. Front axle pinch bolt
  23. 35
    N·m (3.5 Kgf-m, 25.5 Lbf-ft)
  24. 28 N·m
    (2.8 Kgf-m, 20.0 Lbf-ft)
  25. 90 N·m
    (9.0 Kgf-m, 65.0 Lbf-ft)
  26. 23 N·m
    (2.3 Kgf-m, 16.5 Lbf-ft)

Apply fork oil.


Do not reuse.

Repair instructions
...

Front fork removal and installation
Note the right and left front forks are installed symmetrically and therefore the removal procedure for one side is the same as that for the other side. Removal Remove the ...
