Suzuki GSX-R 1000 Service Manual: Rear brake components

Suzuki GSX-R 1000 Service Manual / Brake / Rear brakes / Repair instructions / Rear brake components

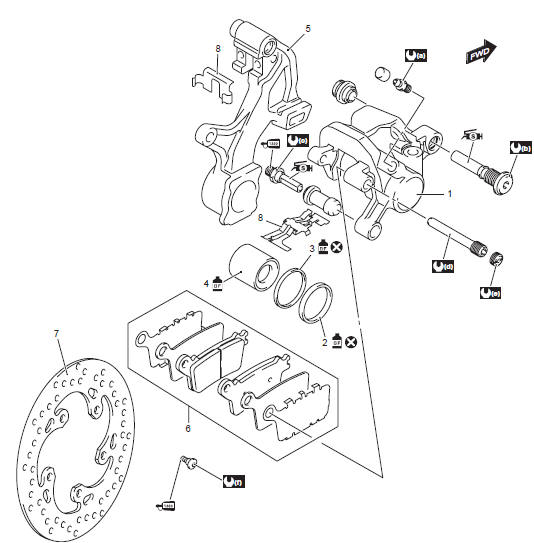

Suzuki GSX-R. Rear brake components



  1. Rear brake caliper
  2. Piston seal
  3. Dust seal
  4. Piston
  5. Rear caliper bracket
  6. Rear brake pad set
  7. Rear brake disc
  8. Brake pad spring
  9. 6
    N·m (0.6 Kgf-m, 4.5 Lbf-ft)
  10. 27 N·m
    (2.7 Kgf-m, 19.5 Lbf-ft)
  11. 12 N·m
    (1.2 Kgf-m, 8.5 Lbf-ft)
  12. 17 N·m
    (1.7 Kgf-m, 12.5 Lbf-ft)
  13. 2.5 N·m
    (0.25 Kgf-m, 2.0 Lbf-ft)
  14. 35 N·m
    (3.5 Kgf-m, 25.5 Lbf-ft)

Apply silicone grease to
sliding surface.

Apply thread lock to the
thread part.

Apply thread lock to the
thread part
Apply brake fluid.


Do not reuse.
Repair instructions
...

Rear brake pad inspection
The extent of brake pads wear can be checked by observing the grooved limit line “a” on the pads. When the wear exceeds the grooved limit line, replace the pads with new ones. Refer to “rear brake ...
