Suzuki GSX-R 1000 Service Manual: Rear brake master cylinder components

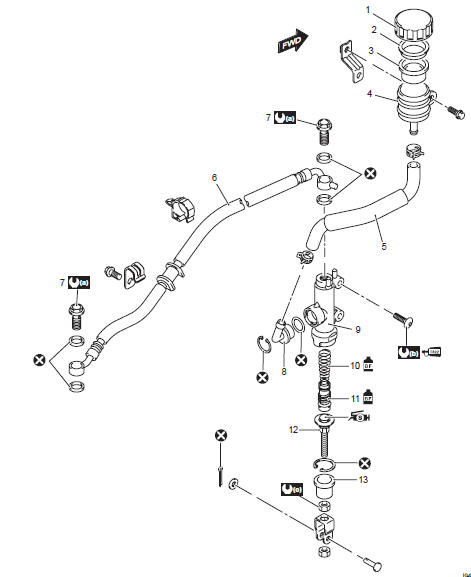

Suzuki GSX-R. Rear brake master cylinder components



  1. Reservoir cap
  2. Plate
  3. Diaphragm
  4. Reservoir tank
  5. Reservoir hose
  6. Brake hose
  7. Brake hose union bolt
  8. Brake hose connector
  9. Master cylinder
  10. Spring
  11. Piston/cup set
  12. Push rod
  13. Dust boot
  14. 23 Nm (2.3 Kgf-m,
    16.5 Lbf-ft)
  15. 10 Nm
    (1.0 Kgf-m, 0.7 Lbf-ft)
  16. 17 Nm
    (1.7 Kgf-m, 12.5 Lbf-ft)

Apply silicone grease
Apply thread lock to the
thread part.

Apply brake fluid
Do not reuse.
