Suzuki GSX-R 1000 Service Manual: Rear turn signal light components

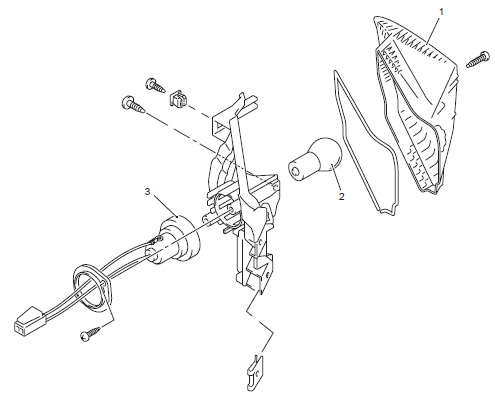

Suzuki GSX-R. Rear turn signal light components


  1. Rear turn signal light lens
  2. Rear turn signal light bulb (12 v 21 w)
  3. Socket
License plate light bulb replacement
Caution when you touch the bulb with your bare hands, clean the bulb with a cloth moistened with alcohol or soap water to prevent premature bulb failure. Remove the license ...

Rear turn signal light removal and installation
Removal Remove the frame cover assembly. Refer to “exterior parts removal and installation” in section 9d .  Remove the rear combination light. Refer to “rear combination light remova ...

Other materials:

Brake fluid replacement
Caution handle brake fluid with care: the fluid reacts chemically with paint, plastic, rubber materials, etc. Front brake Place the motorcycle on a level surface and keep the handlebars straight.  Remove the brake fluid reservoir cap and diaphragm.  Suck u ...

Gearshift shaft / gearshift cam plate removal and installation
Removal Remove the engine sprocket cover. Refer to “engine sprocket removal and installation” in section 3a .  Remove the clutch components. Refer to “clutch removal” in section 5c .  Remove the snap ring (1) and washer (2) from the gearshift shaft. Special tool : 09900–06 ...

Rear wheel dust seal / bearing removal and installation
Removal Remove the rear wheel assembly. Refer to “rear wheel assembly removal and installation” .  Remove the rear sprocket mounting drum assembly (1) from the rear wheel. Remove the wheel dampers (2). Remove the dust seal. Special tool (a): 09913–50121 (oil s ...
