Suzuki GSX-R 1000 Service Manual: Rear wheel assembly construction

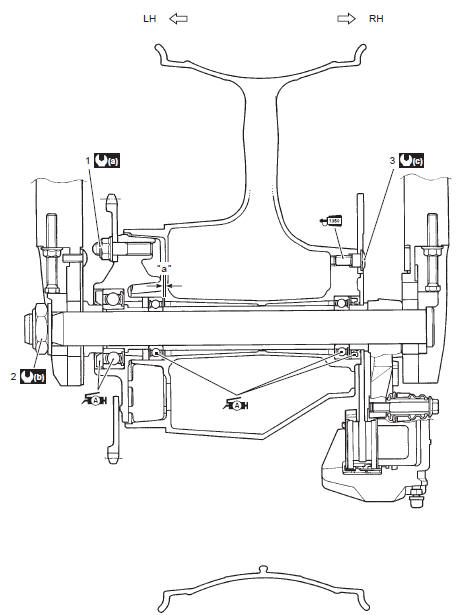

Suzuki GSX-R. Rear wheel assembly construction


  1. Rear sprocket nut
  2. Rear axle nut
  3. Brake disc bolt
  4. Clearance
  5. 60 Nm (6.0 Kgf-m,
    43.0 Lbf-ft)
  6. 100 Nm
    (10 kgf-m, 72.5 Lbf-ft)
  7. 35 Nm
    (3.5 Kgf-m, 25.5 Lbf-ft)

Apply grease.


Apply thread lock to the
thread part.

Rear wheel components
Rear axel nut Collar Dust seal Bearing Retainer Rear sprocket Sprocket mounting drum Wheel damper Bearing Spacer Air valve Rear wheel ...

Rear wheel assembly removal and installation
Removal Loosen the axle nut (1).  Raise the rear wheel off the ground and support the motorcycle with a jack or wooden block. Caution make sure that the motorcycle is support ...
