Suzuki GSX-R 1000 Service Manual: Side-stand construction

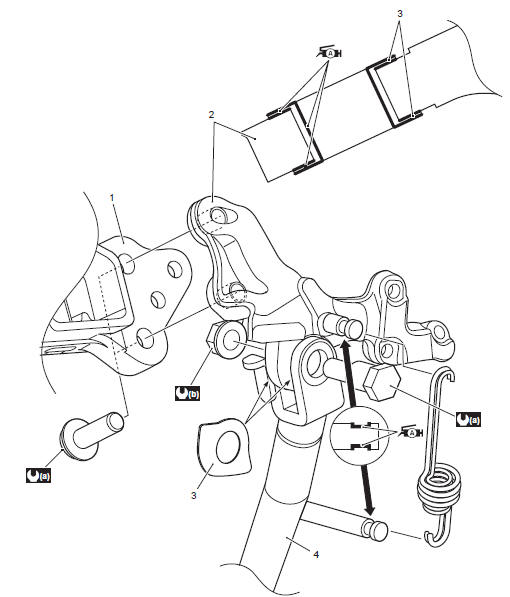

Suzuki GSX-R. Side-stand construction


  1. Frame
  2. Side-stand bracket
  3. Washer
  4. Side-stand
  5. 50 Nm (5.0 Kgf-m,
    36.0 Lbf-ft)
  6. 40 Nm
    (4.0 Kgf-m, 29.0 Lbf-ft)

Apply grease to sliding
surface.

Front footrest bracket construction
Footrest bracket bolt Rear brake master cylinder mounting bolt Footrest guard bolt Footrest bracket no. 1 (Lh) Footrest bracket no. 1 (Rh) Footrest Footrest ...

Pillion footrest construction
Pillion footrest Spring Ball E-ring Washer O-ring Footrest pin Apply grease. Do not reuse. ...
