Suzuki GSX-R 1000 Service Manual: Special tools and equipment

Suzuki GSX-R 1000 Service Manual / Engine / Engine mechanical / Special tools and equipment

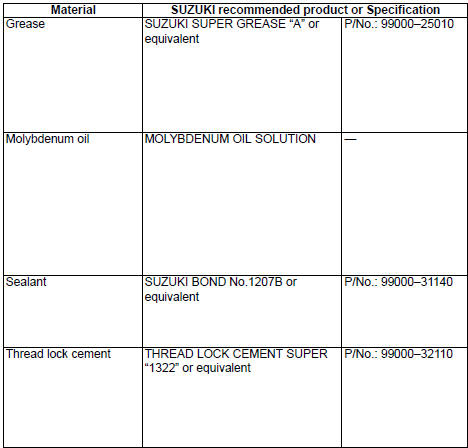

Recommended service material

Suzuki GSX-R. Tightening torque specifications


Note

required service material is also described in the following.

“Throttle body components”  “engine bottom side assembly”

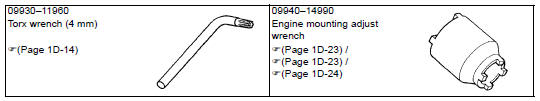

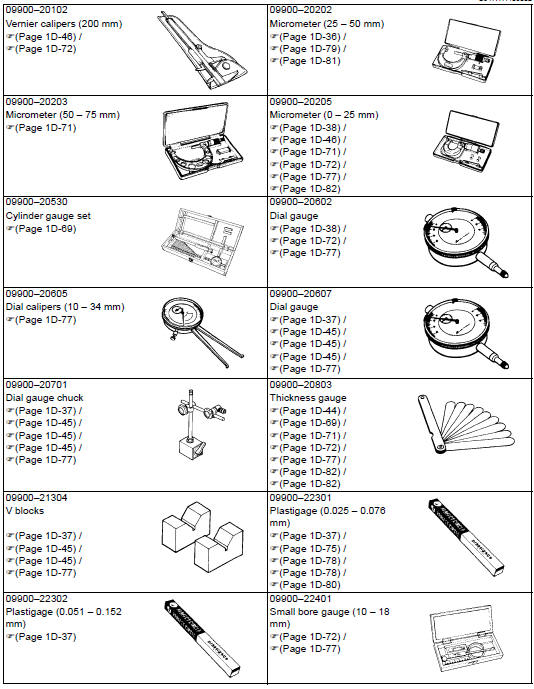

Special tool

Suzuki GSX-R. Special tool


Suzuki GSX-R. Special tool


Suzuki GSX-R. Special tool


Tightening torque specifications
Note the specified tightening torque is described in the following. “Throttle cable routing diagram”  “throttle body components”  “throttle body construction”  “e ...

Engine lubrication system
Precautions Precautions for engine oil Refer to “fuel and oil recommendation” in section 0a . ...
