Suzuki GSX-R 1000 Service Manual: Specifications

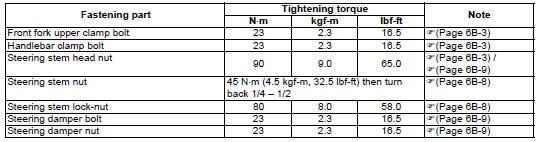

Tightening torque specifications

Suzuki GSX-R. Tightening torque specifications


Note

the specified tightening torque is described in the following.

“Handlebar components”  “steering components”  “steering damper construction”

Reference

: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .

Steering tension adjustment
Check the steering movement in the following procedures:  by supporting the motorcycle with a jack, lift the front wheel unit is off the floor 20 – 30 mm (0.8 – 1.2 In).  Remove the ...

Special tools and equipment
Recommended service material Note required service material is also described in the following. “Handlebar components”  “steering components”  “steering damper constr ...

Other materials:

Speed sensor removal and installation
Removal Remove the left side cowling. Refer to “exterior parts removal and installation” in section 9d .  Disconnect the speed sensor lead wire coupler (1). Remove the speed sensor (2). Installation Install the speed sensor in the reverse order of removal. Pay atte ...

Schematic and routing diagram
Fuel tank drain hose and breather hose routing diagram Fuel tank water drain hose Fuel tank breather hose no. 1 Fuel tank breather hose no. 2 Fuel tank breather hose no. 3 3-Way joint Frame White marking Set the hose end to the root of tank nippl ...

Clamp
Clamp the wire harness at such positions as indicated in “wiring harness routing diagram” in section 9a .  Bend the clamp properly so that the wire harness is clamped securely.  In clamping the wire harness, use care not to allow it to hang down.  Do not use wire or an ...
